TILTING SAFETY GATE The ultimate in mezzanine perimeter fall protection! Our balance dual gate assembly is easily opened and closed from a safe location away from the perimeter. By raising the inside gate, the outside gate automatically closes. Specify desired width from 5 to 8 feet. Overhead clearance is 7 feet. Gate depth is 7 feet. Gate is shipped knocked down, and is easily assembled in minutes.

PIVOT GATE Our pivot gate eliminates the possiblity of dropping a loose gate over the edge of a mezzanine. The lightweight gate is easily pivoted into the open position, and securely locks in closed position. Specify desired gate width, from 4 to 8 feet.

TRACKLESS SLIDING GATE Our trackless sliding safety gate is built into the railing system. The gate rides on silent polyurethane wheels and latches in the closed position. Specify desired width from 4 to 8 feet.

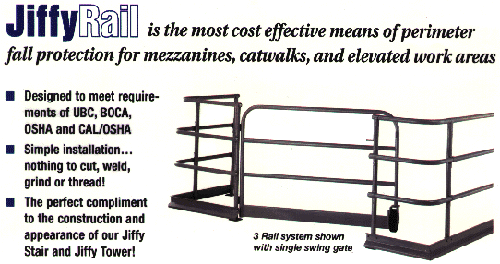

SINGLE AND DOUBLE SWING GATES Our single and double swing gates are hinged to the vertical guardrail posts and roll easily on an 8 inch wheel. The single gate latches to the opposite guardrail post, and the double gate is provided with a cane bolt and gate latch to secure the gates in the closed position. Specify single gate width from 4 to 6 feet, and the double gate width, from 6 to 10 feet.

FLOOR MOUNTED LIFT-OUT GATE Our floor mounted lift-out gate drops into sockets fitted in the mezzanine deck. The gate legs can engage the sockets at an angle, allowing the worker to stand back from the edge when installing or removing the gate. Double sockets are available for extended openings or a completely removable rail system. Specify gate width from 4 to 8 feet.
