Ladder Industries

Aluminum Hand Trucks Are As Strong As Steel But a Lot Easier To Handle

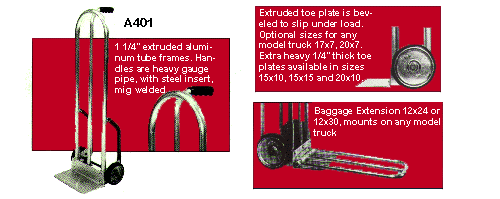

Heavy Duty Option-Full pipe insert in frame, with welded gusset plate at handle. 5/8" steel axle-ball bearing wheels-heat treated aluminum curb climbers (steel optional except model A401)

Model	Frame Size WxH	Type Handle	Toe Plate WxD	Type Wheels	Capacity	Weight
A401	12x44	Single	13x7	6x1 1/2 Mold On	400#	19
A402	12x44	Single	13x7	8x1 5/8 Mold On	400#	18
A404	12x44	Single	13x7	8x2.50 Semi-Pneu.	350#	22

Heavy Duty Option-Full pipe insert in frame, with welded gusset plate at handle. Heat Treated Aluminum Climbers Standards (Steel Optional). 5/8" steel axle-ball bearing wheels

Model	Frame Size WxH	Type Handle	Toe Plate WxD	Type Wheels	Capacity	Weight
A410	12x52	Single	13x7	8x1 5/8 Mold On	400#	19
A412	12x52	Single	13x7	8x2.50 Semi-Pneu.	350#	23
A413	12x52	Single	13x7	10x2.75 Semi-Pneu.	350#	25
A415	12x52	Single	13x7	10x3.50 Pneumatic	400#	23
A429	12x59	Single	13x7	10x3.50 Pneumatic	400#	24
A430	12x59	Single	13x7	8x1 5/8 Mold On	400#	20
A431	16x52	Single	17x7	8x1 5/8 Mold On	400#	21
A432	16x56	Single	17x7	8x1 5/8 Mold On	400#	22
A435	12x72	Single	13x7	8x1 5/8 Mold On	400#	23

Heavy Duty Option-Full pipe insert in frame. 5/8" steel axle-Heat treated aluminum climbers standards (Steel Optional) Wheels

Mold On - Carry maximum, weight, easiest rolling on concrete, with zerk grease fittings
Semi-Pneu. - Softer wheel to cushion load, meduim weight hauling
Pneumatic - Cushions load with adjustable air pressure, for use on rough ground, maximum weight hauling, with zerk grease fittings.

Model	Frame Size WxH	Type Handle	Toe Plate WxD	Type Wheels	Capacity	Weight
A421	12x52	Double	13x7	8x1 5/8 Mold On	400#	19
A422	12x52	Double	13x7	8x2.50 Semi Pneu.	350#	23
A423	12x52	Double	13x7	10x2.75 Semi-Pneu.	350#	25
A424	12x52	Double	13x7	10x3.50 Pneumatic	400#	25
A433	12x52	Single Loop	13x7	8x1 5/8 Mold On.	400#	19
A434	12x48	Single Loop	13x7	10x3.50 Pneumatic.	400#	23
