Vertical Climb Conveyor Cross Over Unit

Specifications:
  • Two piece construction for easy installation
  • 2 1/2" x 2 1/2" x 3/16" steel angle frame
  • 1 1/2" diameter tubular steel guardrails
  • Rungs on 12" centers with dock tread steps
  • 4" toeboard on both sides
  • 30" overall width
  • Yellow enamel painted finish

Options:
  • Bridge inserts for additional horizontal clearance
  • Custom widths and vertical clearances
  • Safety grating treads and decks
  • Closed riser panels
  • Center towers for multiple spans
  • Optional painted finishes
  • Hot dip galvanized finish

Click here to e-mail us for more information or call us at our Toll-Free number (800) 360-6789

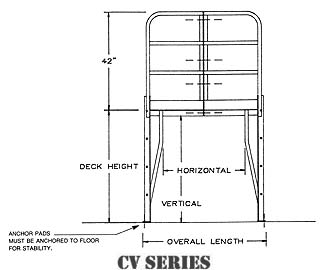

MODEL CONVEYOR CLERANCES
VERTICAL   HORIZONTAL 		DECK
HEIGHT 		OVERALL
LENGTH 		WEIGHT
CV-3320
CV-3330
CV-3339
CV-3349
CV-4520
CV-4530
CV-4539
CV-4549
CV-5720
CV-5730
CV-5739
CV-5749
CV-6920
CV-6930
CV-6939
CV-6949
CV-8120
CV-8130
CV-8139
CV-8149
33"                 20"
33"                 30"
33"                 39"
33"                 49"
45"                 20"
45"                 30"
45"                 39"
45"                 49"
57"                 20"
57"                 30"
57"                 39"
57"                 49"
69"                 20"
69"                 30"
69"                 39"
69"                 49"
81"                 20"
81"                 30"
81"                 39"
81"                 49"
 36"
36"
36"
36"
48"
48"
48"
48"
60"
60"
60"
60"
72"
72"
72"
72"
84"
84"
84"
84"
36"
46"
55"
65"
36"
46"
55"
65"
36"
46"
55"
65"
36"
46"
55"
65"
36"
46"
55"
65"
181 lbs.
203 lbs.
225 lbs.
247 lbs.
204 lbs.
226 lbs.
248 lbs.
270 lbs.
226 lbs.
248 lbs.
270 lbs.
292 lbs.
248 lbs.
270 lbs.
292 lbs.
314 lbs.
271 lbs.
293 lbs.
315 lbs.
337 lbs.
