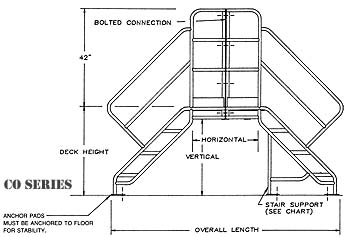

Conveyor Cross Over Unit


CO Series
Specifications:
  • 45 degree angle of climb - 9" rise, 9" run
  • Two piece construction for easy installation
  • 1 1/2" diameter tubular steel frame
  • 9 1/2" deep x 24" wide diamond plate steps
  • 24" wide diamond plate deck
  • 4" toe board on both sides
  • 27" overall width
  • Stair supports on long span units
  • Yellow enamel painted finish

Options:
  • Bridge inserts for additional horizontal clearance
  • Custom widths and vertical clearances
  • Safety grating steps and decks
  • Closed risers
  • Center towers for multiple spans
  • Optional painted finishes
  • Hot dip galvanized finish

Click here to e-mail us for more information or call us at our Toll-Free number (800) 360-6789

MODEL CONVEYOR CLERANCES
VERTICAL HORIZONTAL 		DECK
HEIGHT 		OVERALL
LENGTH 		STAIR
SUPPORT 		WEIGHT
CO-3120
CO-3130
CO-3139
CO-3149
CO-4020
CO-4030
CO-4039
CO-4049
CO-4920
CO-4930
CO-4939
CO-4049
CO-5820
CO-5830
CO-5839
CO-5849
CO-6720
CO-6730
CO-6739
CO-6749 		31"                 20"
31"                 30"
31"                 39"
31"                 49"
40"                 20"
40"                 30"
40"                 39"
40"                 49"
49"                 20"
49"                 30"
49"                 39"
49"                 49"
58"                 20"
58"                 30"
58"                 39"
58"                 49"
67"                 20"
67"                 30"
67"                 39"
67"                 49" 		36"
36"
36"
36"
45"
45"
45"
45"
54"
54"
54"
54"
63"
63"
63"
63"
72"
72"
72"
72" 		82"
92"
101"
111"
100"
110"
119"
129"
118"
128"
137"
147"
136"
146"
155"
165"
154"
164"
173"
183" 		NO
NO
NO
NO
NO
NO
NO
YES
NO
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES 		260 lbs.
282 lbs.
303 lbs.
325 lbs.
291 lbs.
312 lbs.
334 lbs.
376 lbs.
321 lbs.
363 lbs.
385 lbs.
407 lbs.
378 lbs.
400 lbs.
421 lbs.
443 lbs.
408 lbs.
430 lbs.
451 lbs.
473 lbs.
