Access Ladder - INDUSTRIAL - ALL STEEL ALL WELDED
Construction:
  • 3/8" x 2 1/2" flat bar side rails
  • 3/4" diameter round rungs
  • 1 5/8" diameter round - 42" tall boarding rail
  • Stand-off brackets on maximum 72" centers
  • Heavy duty flat bar cage
  • Standard 18 inch wide rungs on 12 inch centers

Standard Installation Considerations:
(As required by code)
  • Cages may be required on all access ladders of more than 20 feet to a maximum unbroken length of 30 feet
  • Intermediate platforms of landings may be required at 30 foot intervals or fraction there of, when overall height exceeds 30 feet
  • When intermediate platforms are used adjacent ladder sections are to be off-set.
  • When exiting to the side at the top of the access ladder, rungs will continue 4 feet above the platform.
  • When exiting to the front at the top of the access ladder, boarding rails shall extend 42 inches above the top rungs.

Click here to e-mail us for more information or call us at our Toll-Free number (800) 360-6789

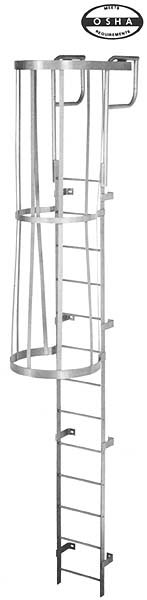

ACC13-BRC

CREATE YOUR OWN MODEL NUMBER!
Example part number of model shown: ACC13-BRC

    ACC - Model Prefix
    13 - Number of rungs (Also reflects top rung height in feet) Standard sizes from 2 to 30 feet
    BR - Boarding rail suffix include to add boarding rail omit if unnecessary
    C - Safety cage suffix include to add safety cage omit if unnecessary


Optional Features:
  • 10-Gauge Steel Security Door (Estimated Weight–55 lbs.)
  • Bottom Hoop Security Hatch (Estimated Weight – 60 lbs.)
  • Foot Pads in lieu of Bottom Stand-Off Brackets
  • Split or Extended Stand-Off Brackets
  • Dock Treads (Estimated Weight – 2-1/2 lbs. Each)
  • Integral Platform – 30" wide x 30" deep (Estimated Weight – 255 lbs.)
  • 3" x 3" x 1/4" Angle Side Stringers
  • Step-Off Platform at Top of the Deck (TOD Style)
  • Side Exit to Either Side at Top of Cage Ladder

Standard Finish is Gray Paint, Optional Colors Available, Hot Dipped Galvanized Finish Available

Click here to e-mail us for more information or call us at our Toll-Free number (800) 360-6789


Steel Access Ladder

BASIC MODEL EST. WT. BASIC MODEL +BOARDING RAIL EST. WT. PAIRS OF STAND-OFF BRACKETS Designed to meet all requirements of Federal OSHA and Cal-OSHA whenproperly applied.











ACC3

26

ACC3-BR

51

2

ACC4

47

ACC4-BR

72

2

 BASIC MODEL WITH CAGE EST. WT. BASIC MODEL WITH RAIL & CAGE EST. WT.

ACC5

55

ACC5-BR

80

2

ACC6

64

ACC6-BR

89

2

ACC7

72

ACC7-BR

97

2

ACC8

81

ACC8-BR

106

2









ACC9

96

ACC9-BR

121

3









ACC10

104

ACC10-BR

129

3

ACC10-C

167

ACC10-BRC

223

ACC11

113

ACC11-BR

138

3

ACC11-C

182

ACC11-BRC

239

ACC12

122

ACC12-BR

147

3

ACC12-C

198

ACC12-BRC

255

ACC13

130

ACC13-BR

155

3

ACC13-C

224

ACC13-BRC

281

ACC14

139

ACC14-BR

164

3

ACC14-C

240

ACC14-BRC

297

ACC15

153

ACC15-BR

178

4

ACC15-C

261

ACC15-BRC

317

ACC16

162

ACC16-BR

187

4

ACC16-C

276

ACC16-BRC

333

ACC17

171

ACC17-BR

196

4

ACC17-C

304

ACC17-BRC

360

ACC18

179

ACC18-BR

204

4

ACC18-C

318

ACC18-BRC

375

ACC19

188

ACC19-BR

213

4

ACC19-C

334

ACC19-BRC

391

REGULATIONS MAY REQUIRE ACCESS LADDERS GREATER THAN 20 FEET IN HEIGHT TO BE EQUIPPED WITH A CAGE.



ACC20

197

ACC20-BR

222

4

ACC20-C

350

ACC20-BRC

406

ACC21

211

ACC21-BR

236

5

ACC21-C

382

ACC21-BRC

438

ACC22

220

ACC22-BR

245

5

ACC22-C

398

ACC22-BRC

454

ACC23

228

ACC23-BR

253

5

ACC23-C

412

ACC23-BRC

469

ACC24

237

ACC24-BR

262

5

ACC24-C

428

ACC24-BRC

485

ACC25

246

ACC25-BR

271

5

ACC25-C

455

ACC25-BRC

512

ACC26

254

ACC26-BR

279

5

ACC26-C

470

ACC26-BRC

526

ACC27

269

ACC27-BR

294

6

ACC27-C

492

ACC27-BRC

548

ACC28

278

ACC28-BR

303

6

ACC28-C

507

ACC28-BRC

564

ACC29

286

ACC29-BR

311

6

ACC29-C

533

ACC29-BRC

590

ACC30

295

ACC30-BR

320

6

ACC30-C

549

ACC30-BRC

606
